Water Softener Installation Guide

Installing a water softener system is the best way to eliminate hard water problems such as scale buildup, dry skin, hair fall, and reduced appliance life. Tempratech water softeners are designed for easy installation, automatic operation, and long-lasting performance.

Follow this step-by-step guide to properly install your Tempratech Water Softener and enjoy clean, soft water throughout your home.

Why Proper Water Softener Installation is Important

Correct installation ensures:

Maximum soft water output
Efficient ion-exchange performance
Longer appliance life
Lower maintenance costs
Proper regeneration cycle

A properly installed water softener prevents scaling in geysers, pipelines, washing machines, and bathroom fittings.

Tools & Materials Required

Before starting the installation, make sure you have:

Adjustable wrench

PVC pipes and connectors

Bypass valve

Teflon tape

Drain pipe

Salt for brine tank

Water inlet and outlet connectors

Step-by-Step Water Softener Installation

Step 01

Choose the Right Installation Location

Install the water softener:

Near the main water supply line
Close to a drain outlet
In a dry and well-ventilated area
On a flat and stable surface

The location should allow easy access for maintenance and salt refilling.

Step 02

Turn Off the Main Water Supply

Before installing the system:

Shut off the main water supply
Open nearby taps to release water pressure

This step prevents leakage during installation.

Step 03

Install the Bypass Valve

The bypass valve allows water flow to bypass the softener during maintenance.

Steps:

Attach the bypass valve to the softener control valve.
Tighten fittings using Teflon tape.
Ensure leak-proof connections.

Step 04

Connect the Water Supply Lines

Now connect the plumbing.

Inlet pipe → Hard water supply
Outlet pipe → Soft water line to house

Make sure the flow direction matches the arrows on the softener valve.

Step 05

Connect the Drain Line

During regeneration, the softener releases mineral waste water.

Attach the drain pipe to:

Floor drain
Utility sink
Drainage pipe

Ensure proper slope to avoid blockage.

Step 06

Fill the Brine Tank with Salt

Add water softener salt into the brine tank.

Salt is essential because it:

Regenerates resin beads
Restores softening capacity
Removes trapped hardness minerals

Step 07

Start the System

Turn on the main water supply and check:

No leaks
Proper water flow
Display panel operation

Run the initial regeneration cycle to activate the system.

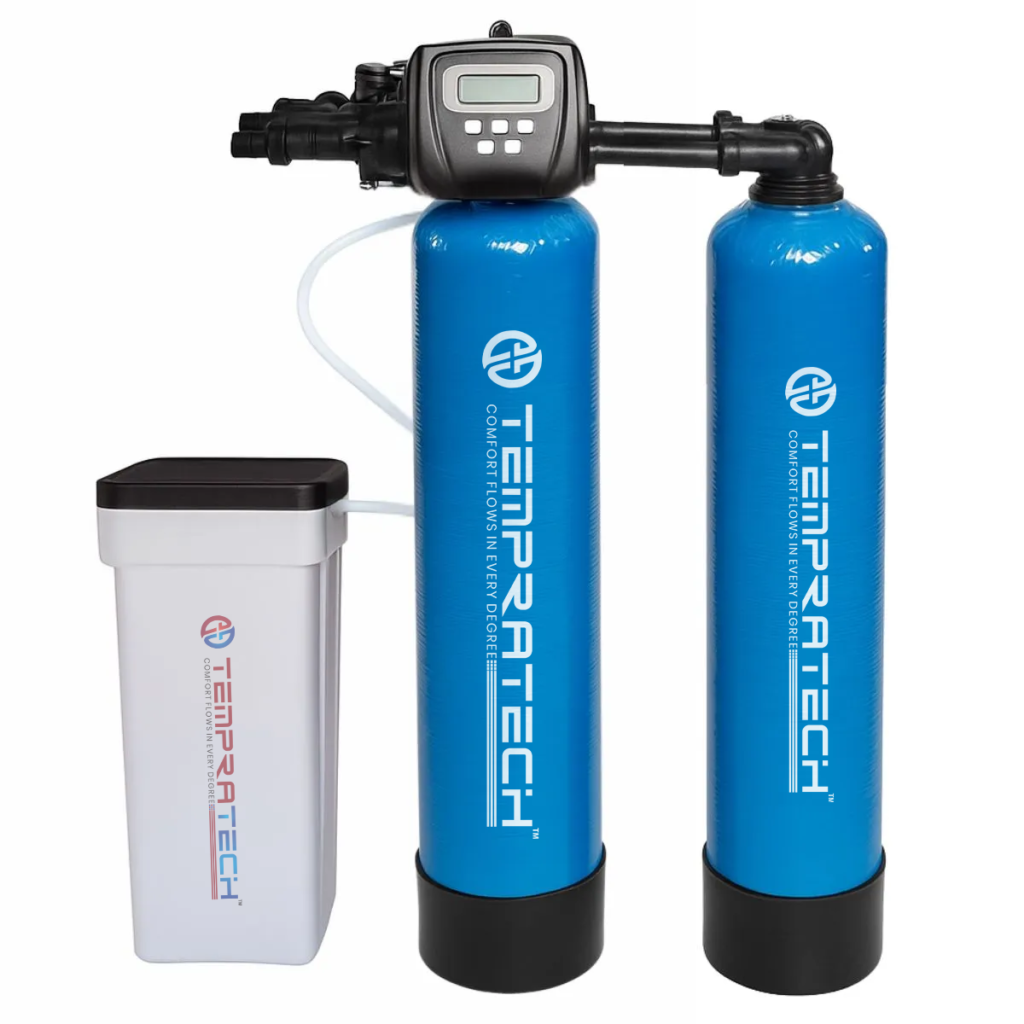

How Tempratech Water Softener Works

Tempratech softeners use an advanced ion-exchange process.

Hard water contains minerals like:

Calcium
Magnesium

The resin inside the softener captures these minerals and replaces them with sodium ions, converting hard water into soft water.

This process:

Prevents scale formation
Protects plumbing and appliances
Improves soap efficiency
Makes skin and hair softer
